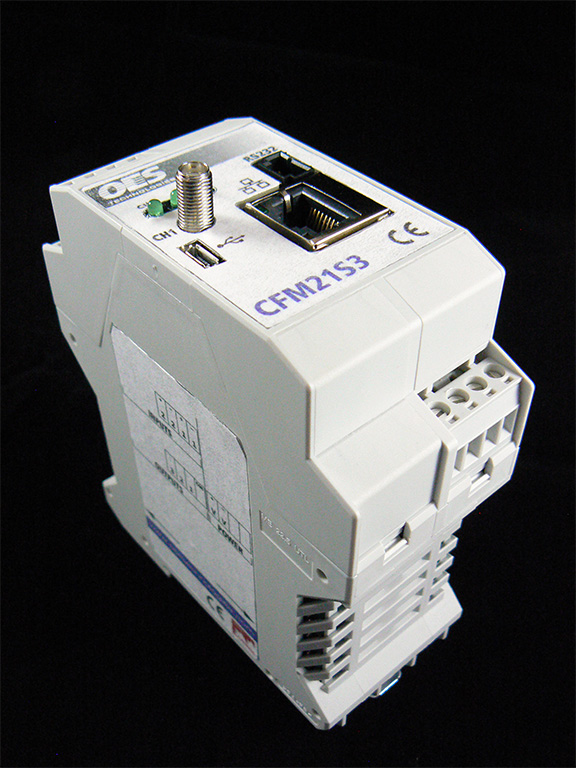

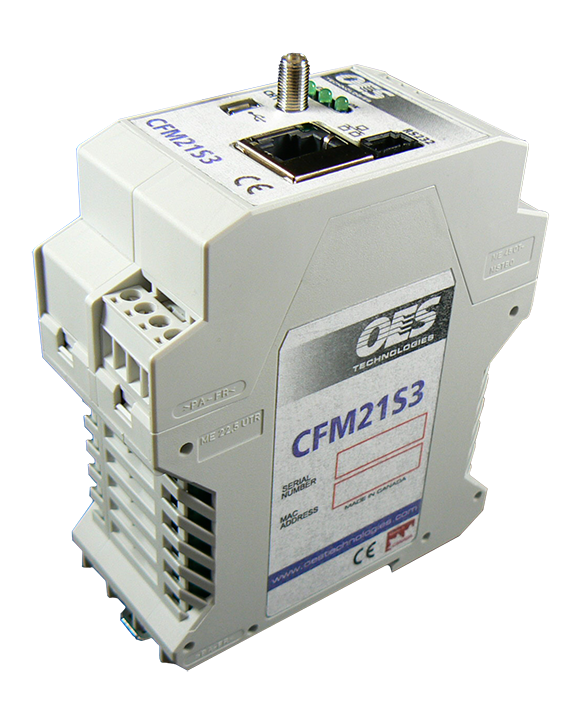

CFM21S3
A compact version of CFM2103 designed to fit tight space requirements for certain applications.
A modular one-channel CFM supplied with ForceView 3 user interface software.
Flexible, industry standard unit. Can be integrated onto bench press controls or complicated automated cutting machines.
DIN rail mounted in control cabinet with no interaction from operator needed.
100% inspection with advanced crimp force algorithms delivering the highest level of crimp defect detection.
User-friendly software interface; no keypads or displays.
Specifications
Dimensions | 99.0 x 4.25 x 113.26mm (3.89” x 1.78” x 4.46”) |
---|---|
Supply voltage | 24VDC |
Communications | 1 Ethernet RJ45, 1 USB 2.0, 1 RS232 |
Sensor inputs | Piezo strain, Piezo force ring, PBT force sensor |
Inputs | 2 |
Outputs | 3 |
Mounting | DIN rail |
Analysis | CDA |
Operating temperature | 17 to 50C, 60 to 120F |
For bench press and automatic wire processing machines.Compatible with a variety of machines including those manufactured by:
- Schaefer
- Schleuinger
- Artos
- Komax
- THB
- Kingsing
- Airstorm
For a list of all compatable machines and manufactures email technologies@oes-inc.com.
Two year warranty from date of purchase.
For questions related to warranty, email technologies@oes-inc.com.
