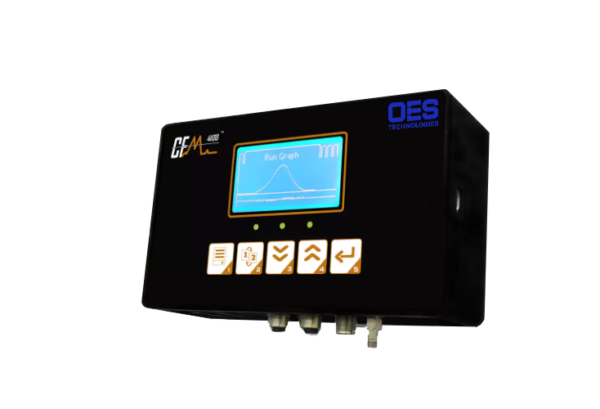

CFM4100

Ideal retrofit option for presses in operation.

A one-channel CFM supplied with ForceView 2 user interface software.

Designed for use on standard bench presses and has manual adjustments of tolerances and very flexibility.

High process reliability with 100 % inspection and designed to connect up to 16 units for traceability.

Ideal for small manufacturers and companies looking for a cost effective CFM solution to meet standards.

Specifications

Dimensions

114.30 x 190.50 x 63.50mm (4.5” x 7.5” x 2.5”)

Supply voltage

24VDC int. adapter, 100-240VAC 50-60Hz 4.0A

Communications

1 Ethernet RJ45, 1 USB 2.0

Sensor inputs

Piezo strain, Piezo force ring, PBT force sensor

Inputs

2

Outputs

4

Display

LCD backlit screen

Mounting

Universal mounting bracket

Analysis

Area and Peak

Operating temperature

18 to 50C, 60 to 120F

Adaptable to a wide range of bench presses and automatic machines.

Two year warranty from date of purchase.

For questions related to warranty, email technologies@oes-inc.com.
