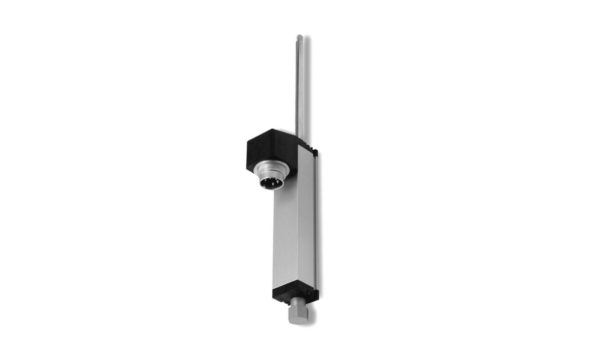

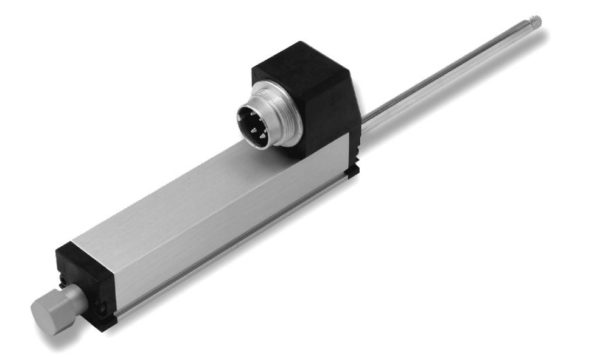

Linear Position Sensors

High resolution measurement.

Robust and reliable.

Suitable for retrofit onto existing presses.

Specifications

Dimensions

26.6 x 18 x 91mm

Operating temperature

15 to 50C, 60 to 120F

Measurement range

0 to 10VDC

Absolute maximum force

10 to 100 mm

Electrical connector

Hard wired or M12 connector

Linear Position Sensors are well suited for applications related to:

  • Baffle Stuffing
  • End Forming
  • High Ton Application
  • Pneumatic and Hydraulic Press Applications

One year warranty coverage from date of purchase.

For questions related to warranty, email technologies@oes-inc.com.
